Server Dashboard

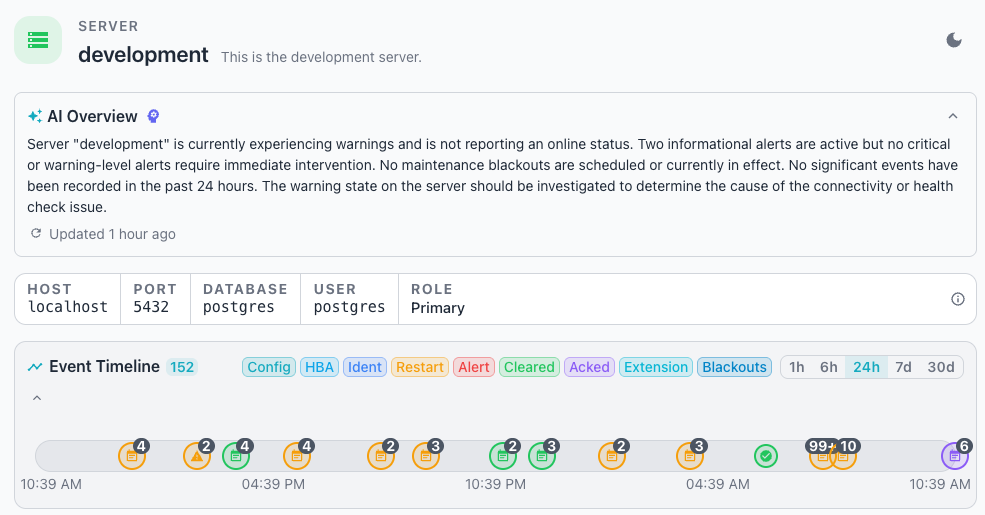

The SERVER dashboard provides detailed metrics for a single PostgreSQL server. Select a server node in the cluster navigator to open the dashboard.

If you have configured AI for your Workbench, the dashboard displays the AI Overview just below the header. The overview provides a concise, AI-powered summary of your server's health, with notes about history and recommended actions to maintain system health.

Below the AI Overview, a bar displays the connection properties used to connect to the server:

The bar displays the following connection details:

• The HOST field shows the network address of the server.
• The PORT field shows the port on which the server listens.
• The DATABASE field shows the database used for the connection.
• The USER field shows the user account used for the connection.
• The ROLE field shows the server's replication role, such as Primary.

Select the info icon (the small i at the right of the pane) to open an expanded information pane that details:

• The header includes the server name after the Server Information: heading.

• The POSTGRESQL section includes:

  • The PostgreSQL version.
  • The data directory location.
  • The values currently assigned to the max_connections, max_wal_senders, and max_replication_slots parameters.

• The DATABASES section includes details about each database that resides on the server; the information includes the database name, size, and the installed extensions and versions.

• The CONFIGURATION section provides the current settings of a number of parameters commonly used when tuning a database.

Below the status tiles, the Event Timeline displays a timeline with indicators that show monitored events that have occurred across the monitored servers. See Event Timeline for details about using the time range selector, event type filters, and reviewing event details.

Hover over an event on the timeline to retrieve details about a point-in-time on the bar.

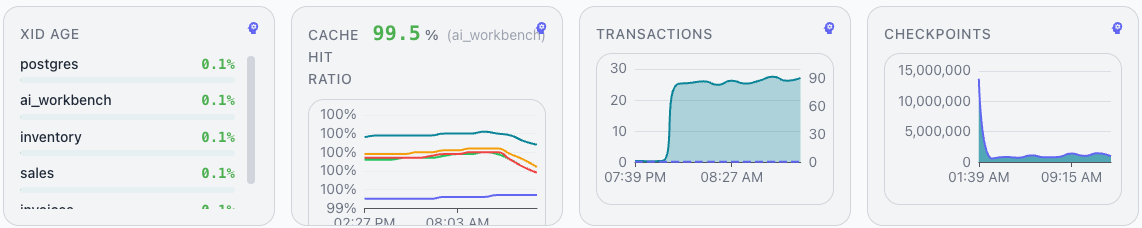

The Key Performance Indicator tiles sit below the event timeline and summarize performance metrics for the selected server in charts and graphs.

The Workbench displays the following tiles:

• The XID AGE tile shows the transaction ID age for the server.
• The CACHE HIT RATIO tile shows the buffer cache hit ratio for the server.
• The TRANSACTIONS tile shows the transaction rate for the server.
• The CHECKPOINTS tile shows the checkpoint activity for the server.

Highlight a point in time on a graph to display the graphed metrics at the selected time in a tooltip, or select the brain icon to perform an analysis of the graph.

The Active Alerts Pane

The Active Alerts pane shows the alerts that are currently active for the server.

See Using Alerts for details on reviewing, acknowledging, and analyzing alerts, and for how to find an alert's acknowledgment reason or a past alert from the Event Timeline.

The Monitoring Pane

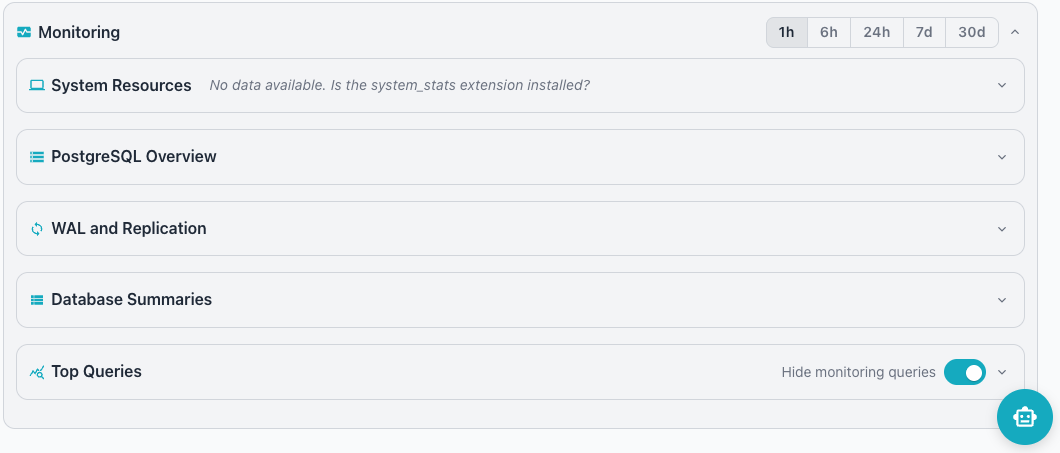

The Monitoring pane presents detailed performance data for the selected server; collapsible sub-panes group related metrics.

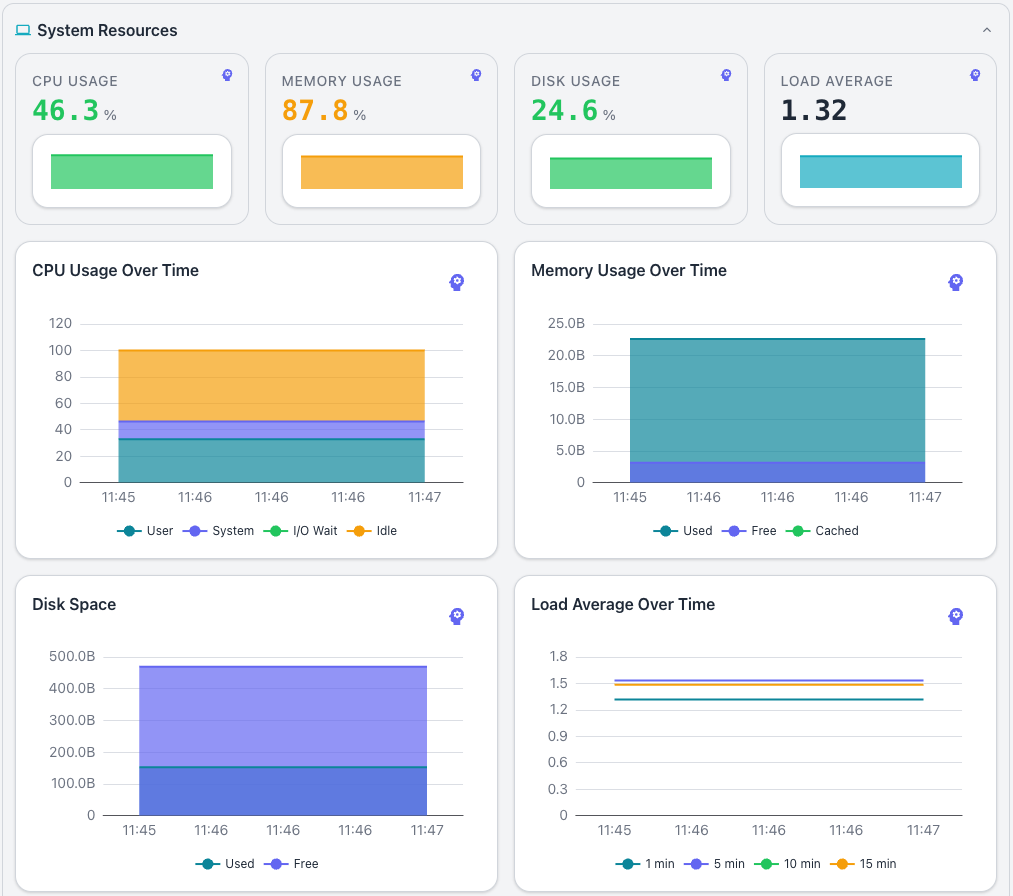

Reviewing System Resources

The System Resources pane displays operating-system metrics for the host that runs the server. Four tiles summarize current resource usage, and each tile displays -- when no data is available.

The pane includes the following tiles:

• The CPU USAGE tile shows the current processor utilization as a percentage.
• The MEMORY USAGE tile shows the current memory utilization as a percentage.
• The DISK USAGE tile shows the current disk utilization as a percentage.
• The LOAD AVERAGE tile shows the current system load average.

Highlight a point on a bar graph for detailed metric about the point-in-time, or select the brain icon to perform an in-depth analysis.

The pane also displays the following time-series charts and graphs:

• The CPU Usage Over Time chart tracks processor utilization over the selected range.
• The Memory Usage Over Time chart tracks memory utilization over the selected range.
• The Disk Space chart tracks disk consumption over the selected range.
• The Load Average Over Time chart tracks the system load average over the selected range.
• The Network I/O chart tracks network throughput over the selected range.

When no data is available, each chart displays a message such as No CPU data available. Is the system_stats extension installed? The charts require the system_stats extension to collect operating-system metrics.

Reviewing the PostgreSQL Overview

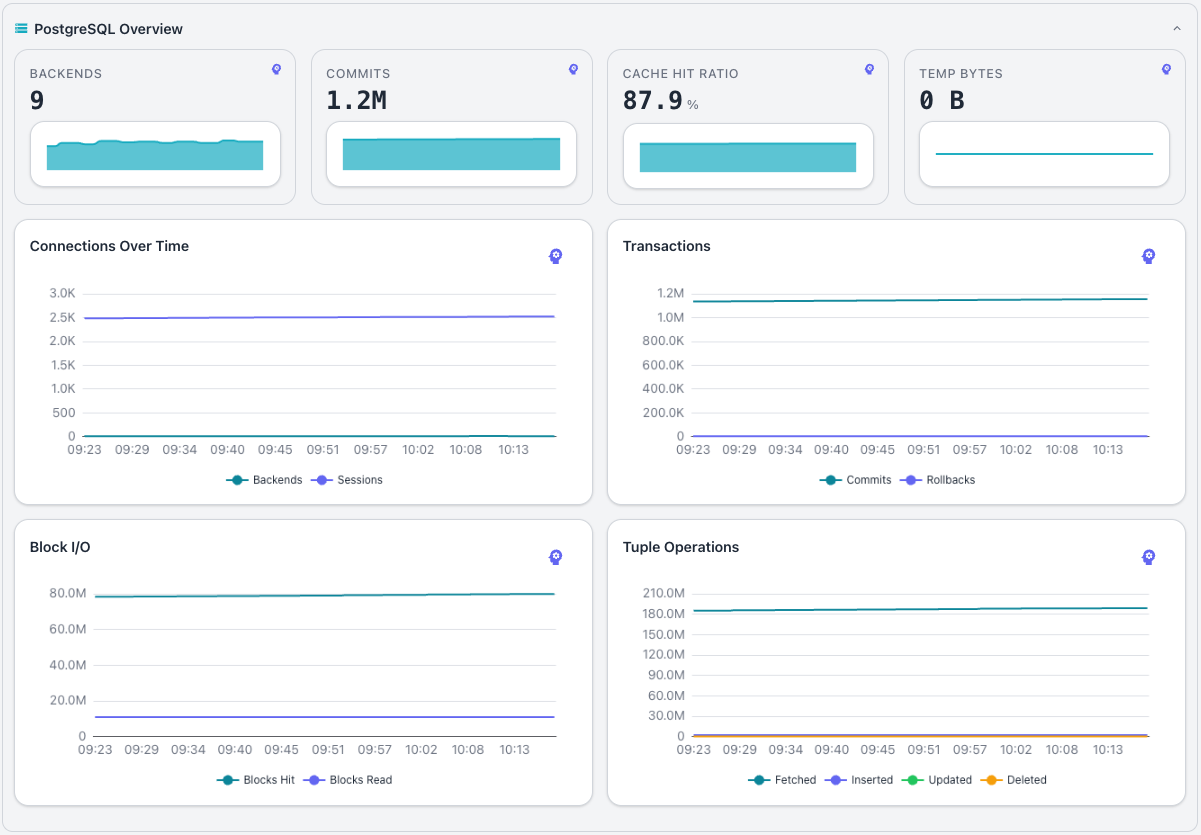

The PostgreSQL Overview pane displays server-level database metrics. Four tiles summarize current database activity, and each tile displays -- when no data is available.

The pane includes the following tiles:

• The BACKENDS tile shows the number of active backend connections.
• The COMMITS tile shows the transaction commit rate for the server.
• The CACHE HIT RATIO tile shows the buffer cache hit ratio for the server.
• The TEMP BYTES tile shows the volume of temporary file data written.

The pane also displays the following time-series charts:

• The Connections Over Time chart tracks active connections over the selected range.
• The Transactions chart tracks the transaction rate over the selected range.
• The Block I/O chart tracks block read and write activity over the selected range.
• The Tuple Operations chart tracks tuple-level activity over the selected range.

When no data is available, each chart displays a message such as No connection data available, No transaction data available, No block I/O data available, or No tuple operation data available.

Reviewing WAL and Replication Activity

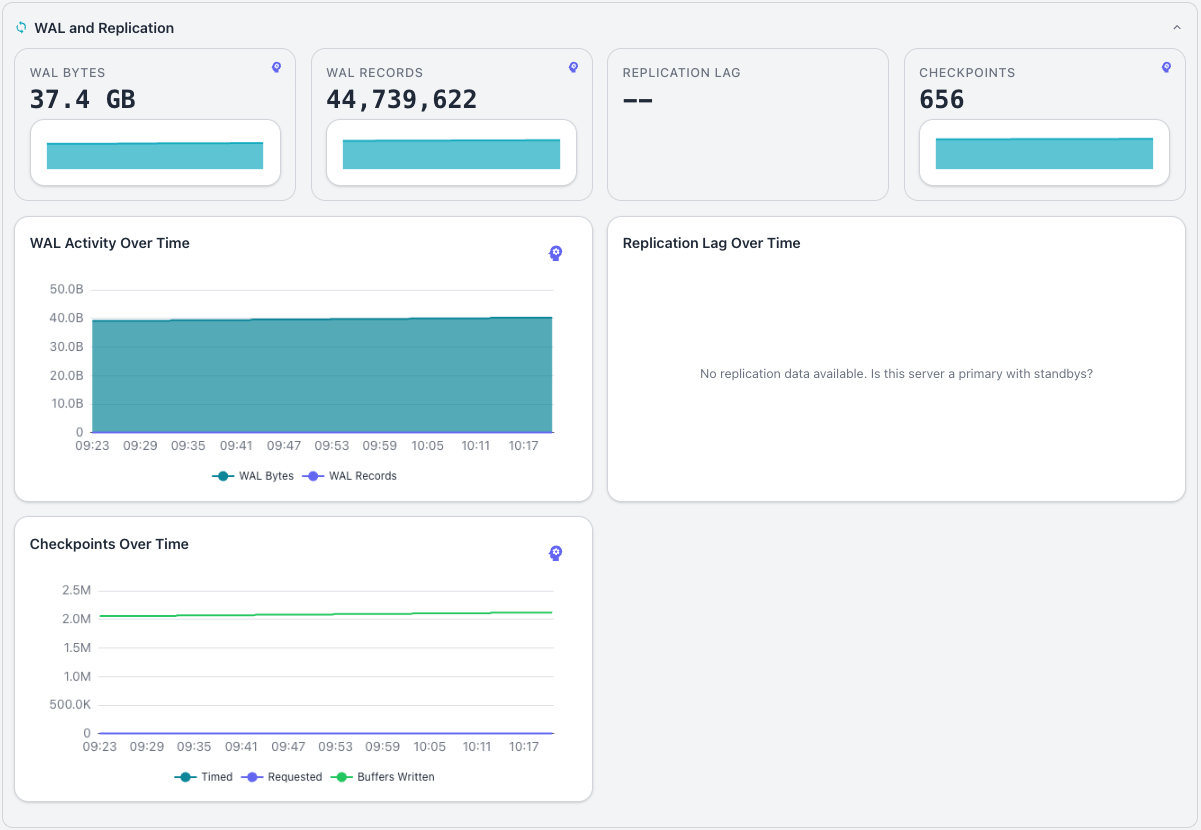

The WAL and Replication pane displays write-ahead log activity and replication status for the server. Four tiles summarize current WAL and replication activity, and each tile displays -- when no data is available.

The pane includes the following tiles:

• The WAL BYTES tile shows the volume of write-ahead log data generated.
• The WAL RECORDS tile shows the number of write-ahead log records generated.
• The REPLICATION LAG tile shows the current replication lag for the server.
• The CHECKPOINTS tile shows the checkpoint activity for the server.

The pane also displays the following time-series charts:

• The WAL Activity Over Time chart tracks write-ahead log generation over the selected range.
• The Replication Lag Over Time chart tracks replication lag over the selected range.
• The Checkpoints Over Time chart tracks checkpoint activity over the selected range.

When no data is available, each chart displays a message such as No WAL data available, No replication data available. Is this server a primary with standbys?, or No checkpoint data available.

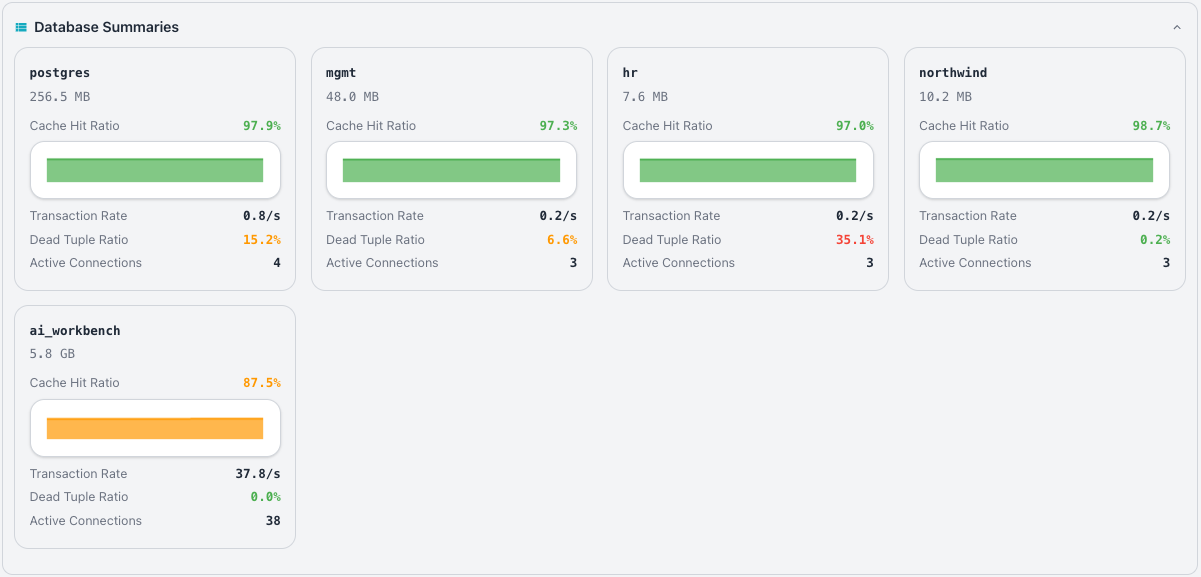

Reviewing Database Summaries

The Database Summaries pane lists all databases on the server with high-level metrics for each database. Click a database tile to navigate to the database dashboard for that database.

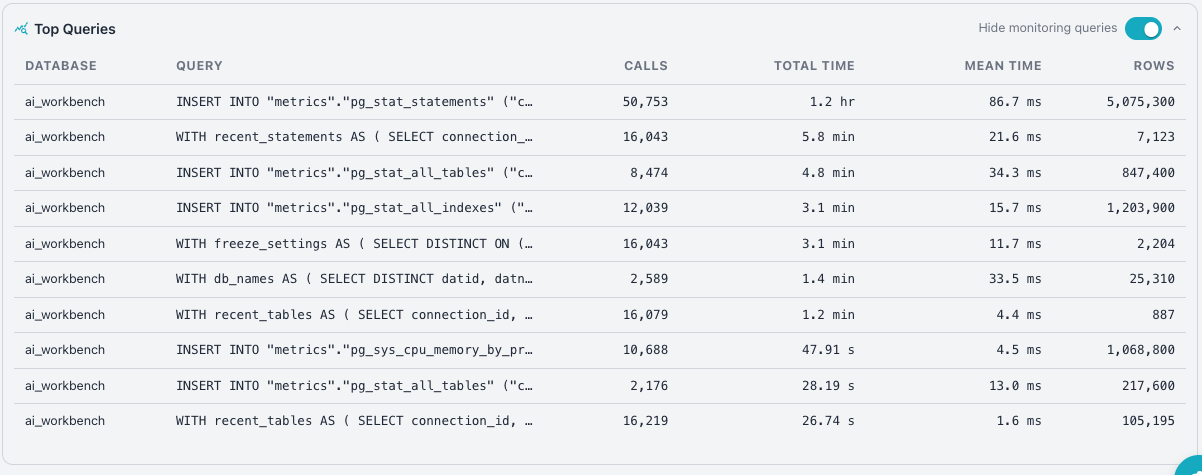

Top Queries

The Top Queries pane ranks queries by resource consumption. The pane displays execution time, call count, rows returned, and source database for the most active queries.

The Database column resolves each query's source database from the dbid field in pg_stat_statements using pg_stat_activity. Because pg_stat_statements collects data cluster-wide, the pane deduplicates queries so each entry reflects a single database context.

The Hide monitoring queries toggle filters out the Workbench's own monitoring queries from the list. The toggle is on by default to focus on application queries.

Reviewing Server Settings

Each server node in the cluster navigator displays a gear icon when you hover over the node; click the gear icon to open the Server Settings dialog. The dialog organizes its settings into a horizontal tab bar, and Cancel and Save buttons at the bottom discard or retain your changes.

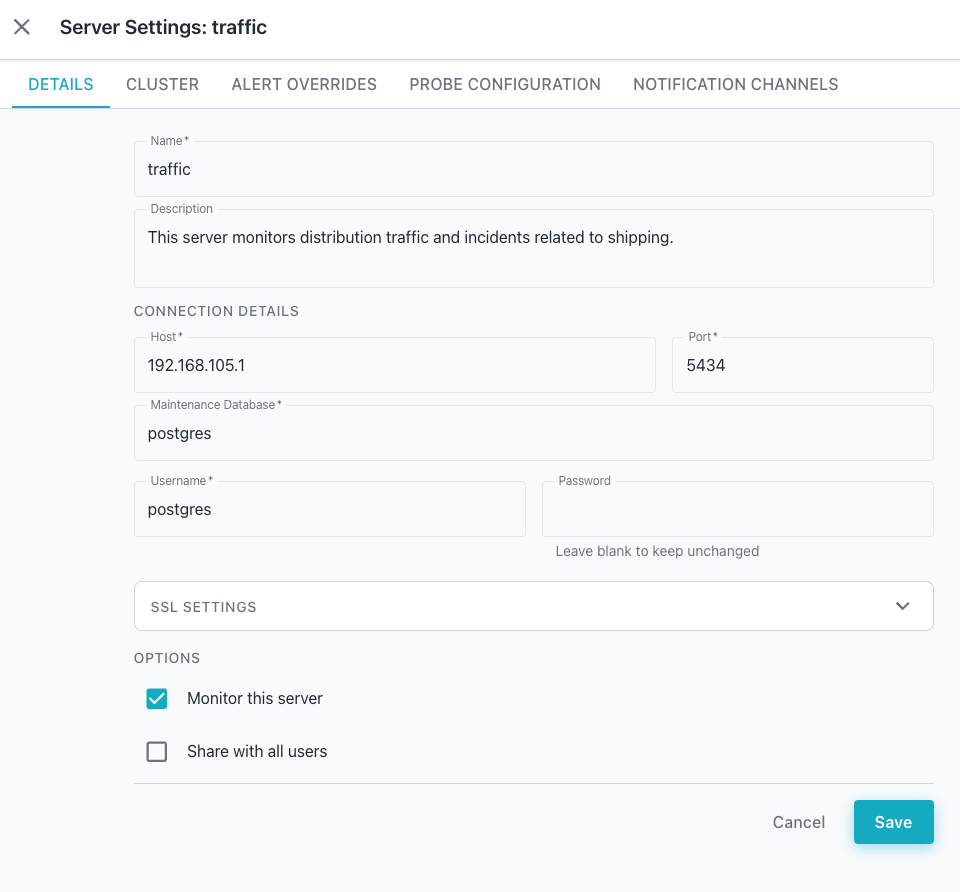

DETAILS Tab

The DETAILS tab presents a form that defines how the Workbench identifies and connects to the server. The Name field is required and sets the display name for the server. The Description field is a multi-line text area that holds optional notes about the server.

The CONNECTION DETAILS subsection specifies how the collector reaches the database. The subsection includes the following fields:

• The Host, Port, Maintenance Database, and Username fields specify the connection values for the selected server; all values are required.
• The Password is optional; leave the field blank to keep the stored password unchanged, or enter a new password to replace it.

A collapsible SSL SETTINGS section appears below the connection fields and remains collapsed by default. Expand this section to configure encrypted connection options.

The OPTIONS subsection includes two checkboxes:

• The Monitor this server checkbox controls whether the collector gathers metrics from the server.
• The Share with all users checkbox makes the server visible to every user of the Workbench.

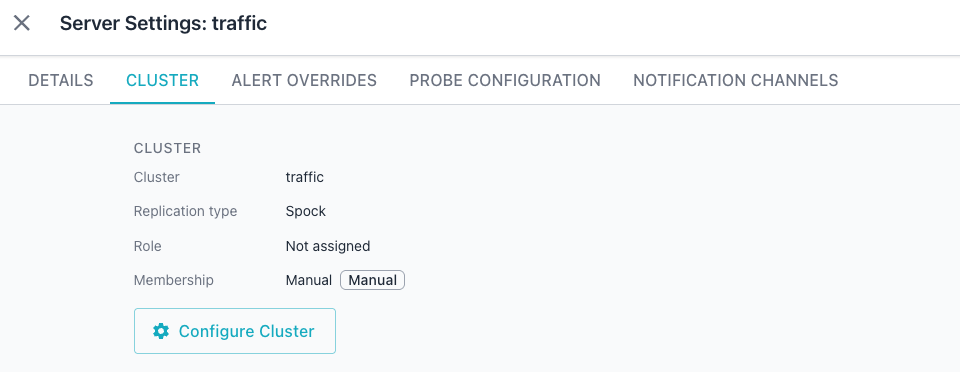

CLUSTER Tab

The CLUSTER tab shows the server's current cluster assignment and role. The tab displays the following fields:

• The Cluster field shows the name of the cluster the server belongs to, such as "traffic".
• The Replication Type field shows the replication technology used by the cluster, such as "Spock".
• The Role field shows the server's role within the cluster, or "Not assigned" when the server has no assigned role.
• The Membership field shows how the server joined the cluster, such as "Manual", alongside a badge that repeats the membership type.

Click the Configure Cluster button to open the cluster configuration dialog and manage the server's cluster membership.

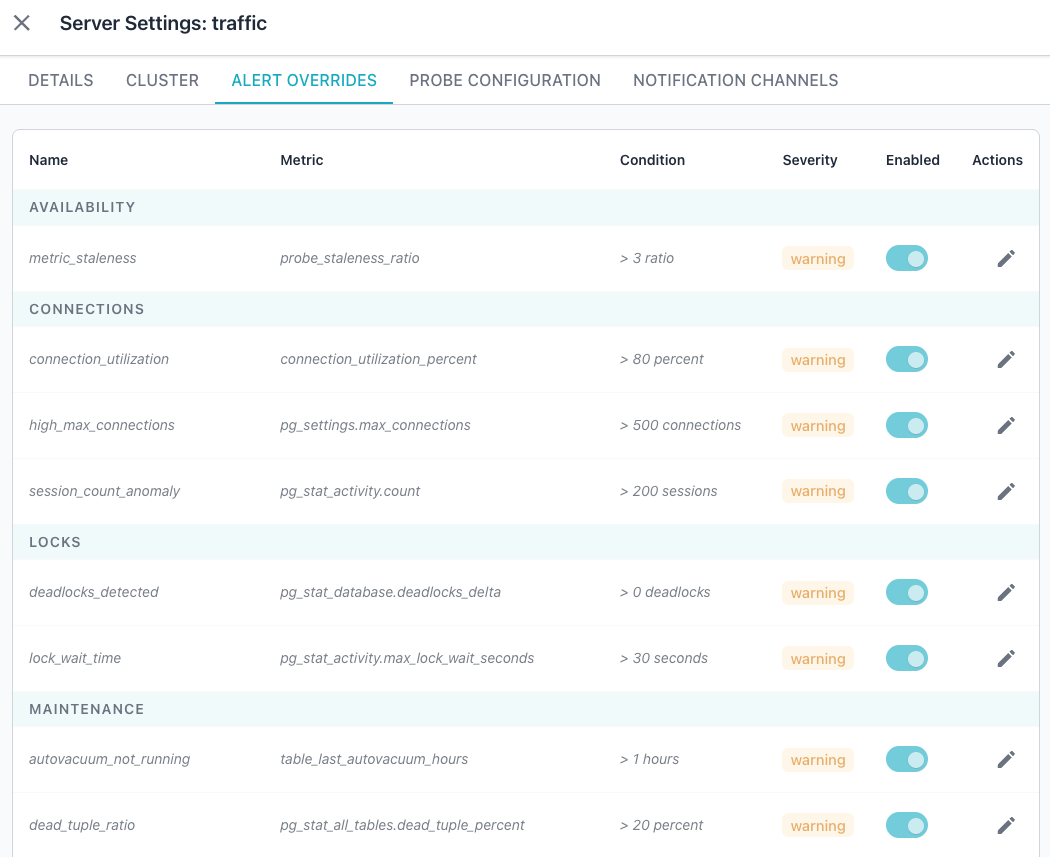

ALERT OVERRIDES Tab

The ALERT OVERRIDES tab lets you tailor the alert rules for the selected server. A table lists the current rules and settings; each row describes one alert rule and its threshold. The table contains the following columns:

• Name identifies the alert rule.
• Metric names the metric the rule monitors.
• Condition specifies the threshold that triggers the alert.
• Severity indicates the alert level, such as "warning".
• Enabled provides a toggle that activates or deactivates the rule for the selected server.
• Actions provides an edit (pencil) icon that opens the rule for adjustment.

The Workbench groups the rows under category headers such as AVAILABILITY, CONNECTIONS, and LOCKS; additional categories appear as you scroll through the table. See Alert Rules for the full list of built-in rules and their default thresholds.

PROBE CONFIGURATION Tab

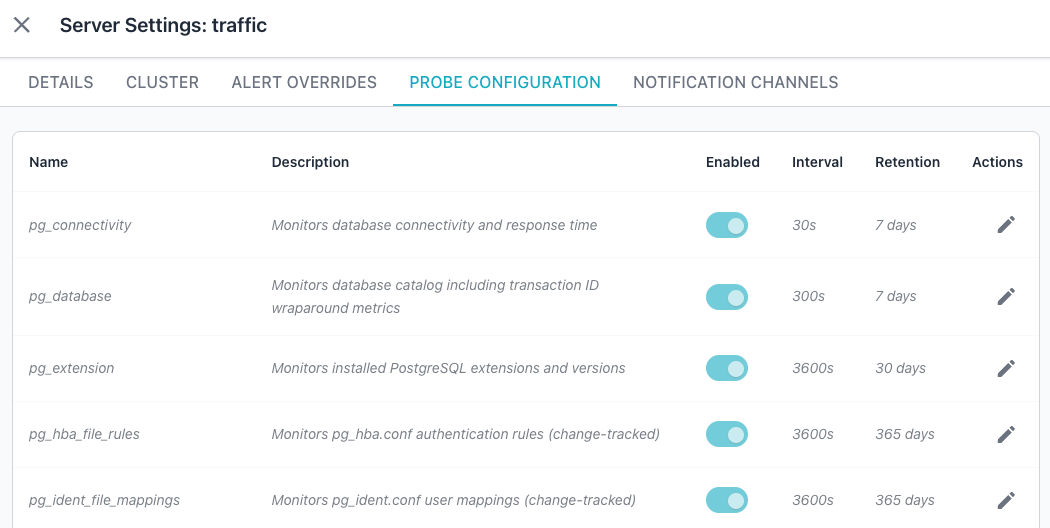

The PROBE CONFIGURATION tab controls the probes that collect metrics for the selected server. A table lists the current probes and their settings; each row describes one probe and its configuration. The table contains the following columns:

• Name identifies the probe.
• Description explains what the probe monitors.
• Enabled provides a toggle that activates or deactivates the probe for the selected server.
• Interval specifies how often the probe collects data, in seconds.
• Retention specifies how long the Workbench retains the probe's collected data.
• Actions provides an edit (pencil) icon that opens the probe for adjustment.

The table scrolls to reveal additional probes below the visible rows. See Probe Management for the full list of built-in probes and their scopes.

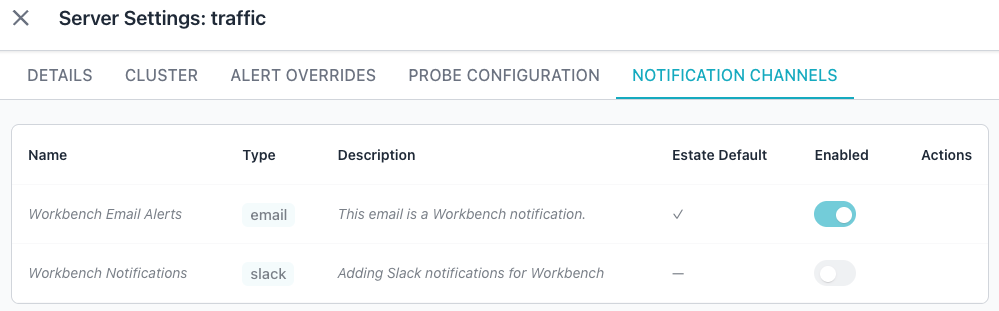

NOTIFICATION CHANNELS Tab

The NOTIFICATION CHANNELS tab manages the channels that deliver alert notifications for the selected server. A table lists the available channels and their settings; each row describes one channel and its current override state. The table contains the following columns:

• Name identifies the notification channel.
• Type shows the channel type, such as email, Slack, Mattermost, or webhook.
• Description shows the channel's optional description.
• Estate Default indicates whether the channel applies to all servers or clusters by default.
• Enabled provides a toggle that activates or deactivates the channel for the selected server, overriding the estate default.
• Actions provides controls for managing the channel's override for the selected server.

If you have not configured any notification channels, the tab displays the empty state "No notification channels found." See Notification Channels for the full list of supported channel types and how to configure them.
