Enabling AI Features

If you have enabled AI in your workbench instance, the AI Overview appears at the top of each object-related page in the console, above the status panel. The AI Overview generates concise, AI-powered summaries of your database estate or selected objects.

Reviewing the AI Overview

AI features help you understand and resolve issues faster by turning raw metrics and events into plain-language insight. Using AI in the Workbench provides the following benefits:

  • The brain icon on a server, cluster, chart, KPI tile, or query opens a detailed AI analysis with actionable recommendations.
  • Run SQL statements that an analysis report suggests directly from the report, without leaving the Workbench.
  • The AI Overview summarizes database health at a glance, without digging through individual metrics.
  • Ask Ellie answers questions about your databases, alerts, and performance in plain language through the built-in chat assistant.

Enabling AI Mode

AI features require a configured LLM provider and a valid API key. When you disable AI mode, the Workbench hides the AI analysis icon, Ask Ellie chat, alert analysis, and chart analysis; see Running Without AI for details. Follow these steps to enable AI mode:

  1. Choose a provider. The server supports anthropic, openai, gemini, and ollama.
  2. Obtain an API key from your chosen provider, or install Ollama for a self-hosted local model. Ollama does not require an API key.

  3. Store the API key in a file readable only by the server process. In the following example, the echo command writes the key and chmod restricts access to the file owner:

    echo "your-api-key" > ~/.anthropic-api-key
chmod 600 ~/.anthropic-api-key

  4. Update the LLM CONFIGURATION section of the server configuration file (/etc/pgedge/ai-dba-server.yaml), adding your LLM provider details and specifying the path to your provider's API key:

    #=========================================================================
# LLM CONFIGURATION (Web Client Chat Proxy)
#=========================================================================
#
# The server proxies LLM requests for web clients and CLI tools that
# don't have direct access to LLM APIs. API keys must be configured
# for the chosen provider.
#
llm:
  # LLM provider: "anthropic", "openai", "gemini", or "ollama"
  # Default: anthropic
  # Default: claude-sonnet-4-5
  model: "claude-sonnet-4-5"

  #-----------------------------------------------------------------------
  # Anthropic Configuration
  #-----------------------------------------------------------------------

  # Anthropic API key — provide the path to a file containing the
  # key via anthropic_api_key_file (raw keys cannot be set inline
  # for security).
  # anthropic_api_key_file: "~/.anthropic-api-key"

  5. Save the file and start the server; for example:

    /opt/ai-workbench/ai-dba-server -config /etc/pgedge/ai-dba-server.yaml &

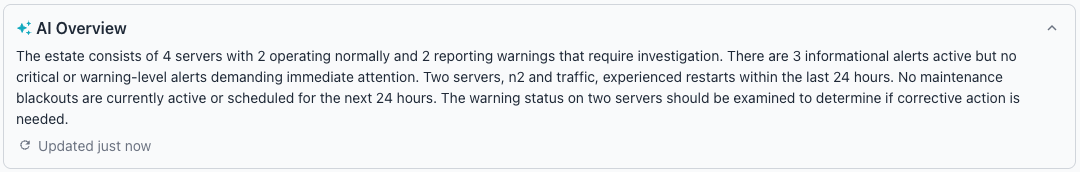

Summary Panel

The AI Overview uses a large language model to produce a natural-language summary of database health and status. The system collects current alerts, events, and server metadata; it then sends this context to the configured LLM for summarization. The summary describes server health, active alerts that need attention, and any ongoing or upcoming blackouts; when everything is healthy, the overview states so briefly.

A sparkle icon and the "AI Overview" label identify the panel. While the server prepares the first summary, the panel displays a loading placeholder followed by a "Generating overview..." message.

Reviewing the AI Overview

The AI Overview provides the following capabilities:

  • The summary adapts to the selected scope in the cluster navigator.
  • The system caches summaries for five minutes to reduce LLM calls.
  • Estate-wide summaries refresh automatically every 60 seconds.
  • The panel displays a "(stale)" indicator when the cached summary expires.
  • Users can collapse the overview panel using the expand/collapse icon on the right of the header; the header remains visible when collapsed, and the collapse state persists across sessions.
  • A refresh button forces immediate regeneration of the current summary.

Scope

The AI Overview adapts the summary based on the current selection in the cluster navigator. The system sends different context to the LLM depending on the scope.

The following table describes the available scopes:

Scope Context Sent to LLM
Estate All servers, active alerts, and recent events across the entire installation.
Cluster Servers, alerts, and events within a specific cluster.
Server A single server's status, alerts, and recent events.
Group Servers, alerts, and events within a cluster group.

The estate scope activates by default, before you select a specific object. Selecting a cluster, server, or group in the navigator updates the overview to reflect that scope.

AI-Powered Analysis

Beyond the summary panel, the Workbench offers a deeper, agentic AI analysis for servers, clusters, charts, KPI tiles, and queries. Each variant follows the same pattern: click a brain icon to open a full-screen dialog, the LLM gathers additional context using built-in tools, and the dialog renders a structured markdown report. Clicking Run immediately executes any read-only SQL that the report suggests; write statements display a confirmation dialog first. Analysis Caching and Downloading Analysis Reports below describe the report and its caching behavior once, since they work the same way for every scope.

Hint

If a Workbench feature displays a purple brain icon in the object's header, you can select that icon to generate a detailed analysis of the selected object or metrics. If a feature displays an amber brain icon, a cached analysis is available for review.

Server and Cluster Analysis

The AI Overview panel displays a brain icon when you select a server or cluster in the navigator. Clicking the brain icon opens a full-screen AI analysis dialog.

The analysis uses an agentic LLM loop that accesses monitoring tools to gather data. The LLM can query metrics, fetch baselines, review alerts, query databases, and inspect schemas during the analysis process.

The analysis covers the following areas depending on the selected scope:

  • For individual servers, the analysis examines system resources, PostgreSQL configuration, alert patterns, and metric trends.
  • For clusters, the analysis compares metrics across all member servers and examines replication health.

The dialog displays real-time progress as the AI gathers data from different tools. Each tool invocation appears in the dialog so users can follow the analysis workflow.

Chart and KPI Tile Analysis

Charts, KPI tiles, leaderboards, and the vacuum status section each display a brain icon in the upper-right corner. Clicking the icon opens an analysis dialog and starts the LLM analysis, which examines the chart data alongside server context and timeline events for the selected range to identify trends, anomalies, and actionable recommendations.

The analysis follows these steps:

  1. The Workbench checks for a cached analysis result.
  2. The Workbench fetches server context from the connection.
  3. The Workbench fetches timeline events for the time range.
  4. The Workbench serializes the chart data and sends it to the LLM.
  5. The LLM returns a structured analysis report.

Each chart analysis report contains a structured assessment that includes:

  • The Summary section describes the alert and its impact on the monitored service.
  • The Analysis section examines the alert pattern, historical context, and root cause.
  • The Remediation Steps section provides step-by-step instructions for resolving the issue.
  • The Threshold Tuning section recommends adjustments to alert thresholds where applicable.
  • The Recommendation section suggests long-term improvements to prevent recurrence.

The analysis includes timeline events from the chart's time range to identify correlations between metric changes and system events. The LLM considers the following event types:

  • Configuration changes to PostgreSQL settings.
  • Alert activations and resolutions.
  • Server restarts and recovery events.
  • Extension installations and upgrades.
  • Blackout periods and maintenance windows.

Query Analysis

The query detail view displays an AI Overview panel below the query text when the server has a configured LLM provider. The panel provides a brief plain-text summary of the query's performance characteristics in two to three sentences, assessing whether the query appears healthy or has potential performance issues. A refresh button regenerates the summary on demand, and a relative timestamp shows when the Workbench last generated it. The Workbench caches these summaries for 30 minutes, and the panel hides when the server has no configured LLM provider.

Click the brain icon in the AI Overview panel to open a full-screen analysis dialog. The analysis uses an agentic LLM loop with the following tools to gather additional context before producing a structured report:

  • The query metrics tool retrieves historical metric values with time-based aggregation.
  • The metric baselines tool provides statistical baselines including mean, standard deviation, and extremes.
  • The database query tool executes diagnostic queries against the relevant database.
  • The schema inspection tool retrieves table and index definitions for referenced objects.
  • The query validation tool checks SQL syntax and execution plans.
  • The knowledgebase search tool finds relevant entries using similarity matching.

Each analysis report contains four sections:

  • The Summary section describes the query and its current performance characteristics.
  • The Performance Analysis section examines execution metrics, trends, and resource consumption.
  • The Optimization Opportunities section identifies potential improvements to the query or schema.
  • The Recommendations section suggests specific actions with supporting SQL examples.

Analysis Caching

Each analysis dialog caches its results on the client side for 30 minutes to avoid redundant LLM calls. An amber brain icon indicates that a cached analysis is available; click it to reopen the cached report instantly instead of running a new analysis. For chart and KPI tile analysis, the cache key combines the metric description, connection, database, and time range.

Downloading Analysis Reports

Each analysis dialog's footer includes a Download button that saves the report as a markdown file, including the report details, the full analysis text, and a generation timestamp. For server and cluster analysis, the Workbench names the file using the format {type}-analysis-{name}-{YYYY-MM-DD}.md.

Summary Caching

The system caches overview summaries for five minutes to reduce LLM usage and improve response times.

Estate-wide summaries refresh automatically every 60 seconds in the background. The client displays the cached summary immediately and updates the panel when a new summary arrives. The server also regenerates the overview when the estate state changes significantly; the Workbench receives these updates in real time and refreshes the panel automatically, without waiting for the next scheduled refresh.

The system generates scoped summaries for clusters, servers, and groups on demand. It returns a cached summary when the cache entry has not expired, and generates a new summary when the cache entry is stale or missing.

The status panel displays a visual indicator when the displayed summary has passed its expiration timestamp. The indicator signals that the summary may not reflect the most recent state.

A refresh button appears next to the "Updated N min ago" timestamp. Clicking the refresh button forces the system to regenerate the summary immediately, bypassing the cache. The button displays a spinning animation while the system generates a new summary.

Running Without AI

When the server starts without valid LLM credentials, the Workbench automatically hides the AI Overview and the analysis dialogs for servers, clusters, charts, KPI tiles, leaderboards, the vacuum status section, and queries. The web client also displays a static welcome message in place of the AI Overview panel; dashboards, charts, and KPI tiles continue to display data normally without AI.

The server logs the following message at startup when AI is not available:

AI Overview: DISABLED (requires datastore and LLM
configuration)

All monitoring, alerting, and dashboard features continue to operate normally without AI.
